Crystal Clear Frequencies.
Common Mode Power Line Chokes
The Würth Elektronik WE-CMBNC is a VDE certified series of common mode chokes with a highly permeable nanocrystalline core material. Despite the small size, it delivers oustanding broadband attenuation performance, high rated currents and low DC resistance values. Low profile and high voltage ratings can also be realized by the common mode chokes of the WE-CMB family.
The WE-CMBNC
Advantages
- High permeability nanocrystalline core material
- High IR & low RDC in a small size
- Broadband suppression

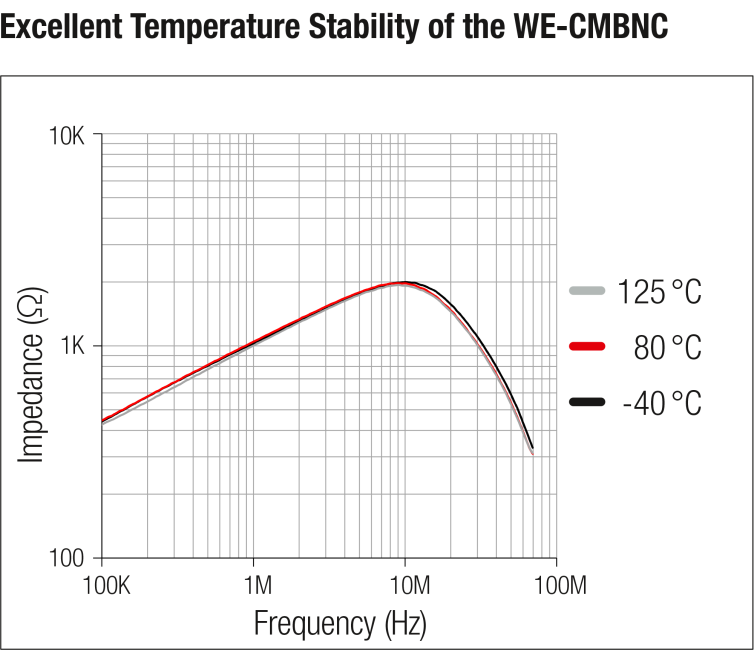

- Stable inductance values at high temperatures
- Improved isolation through plastic case and patented winding spacer
Innovative Structure

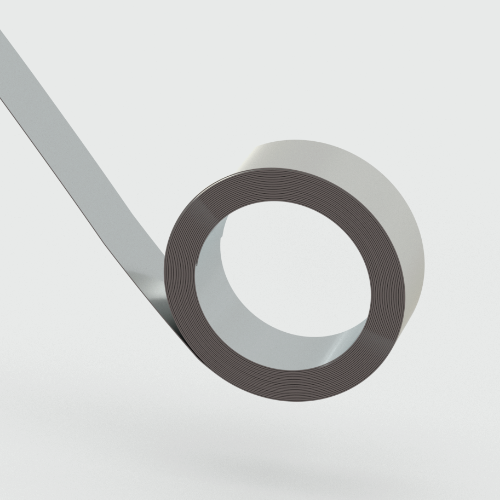

High permeability nanocrystalline core material

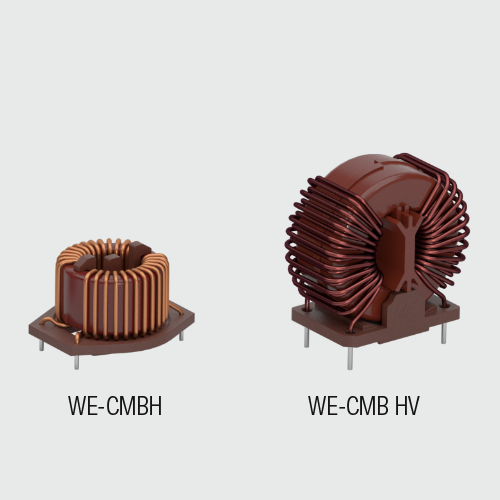

High IR & Low RDC in a small size

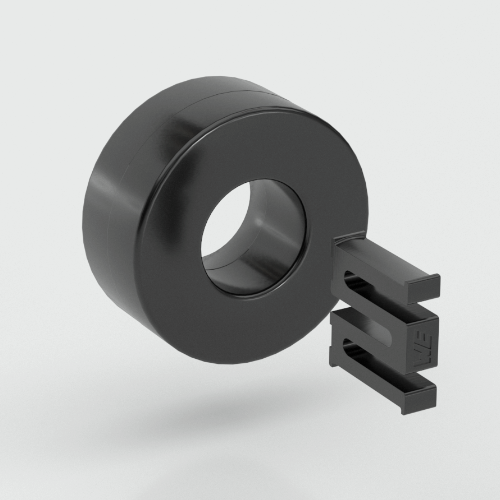

Improved isolation through plastic case and winding spacer

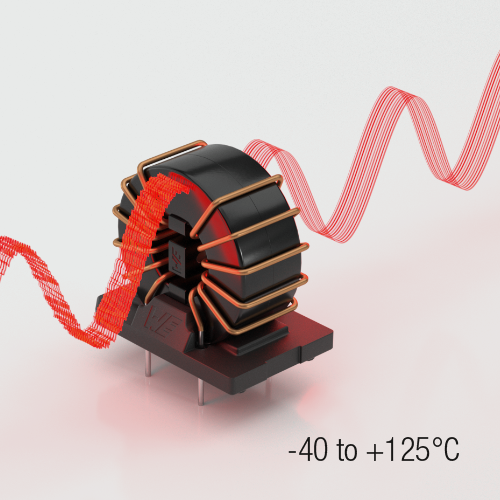

Stable inductance values at high temperature

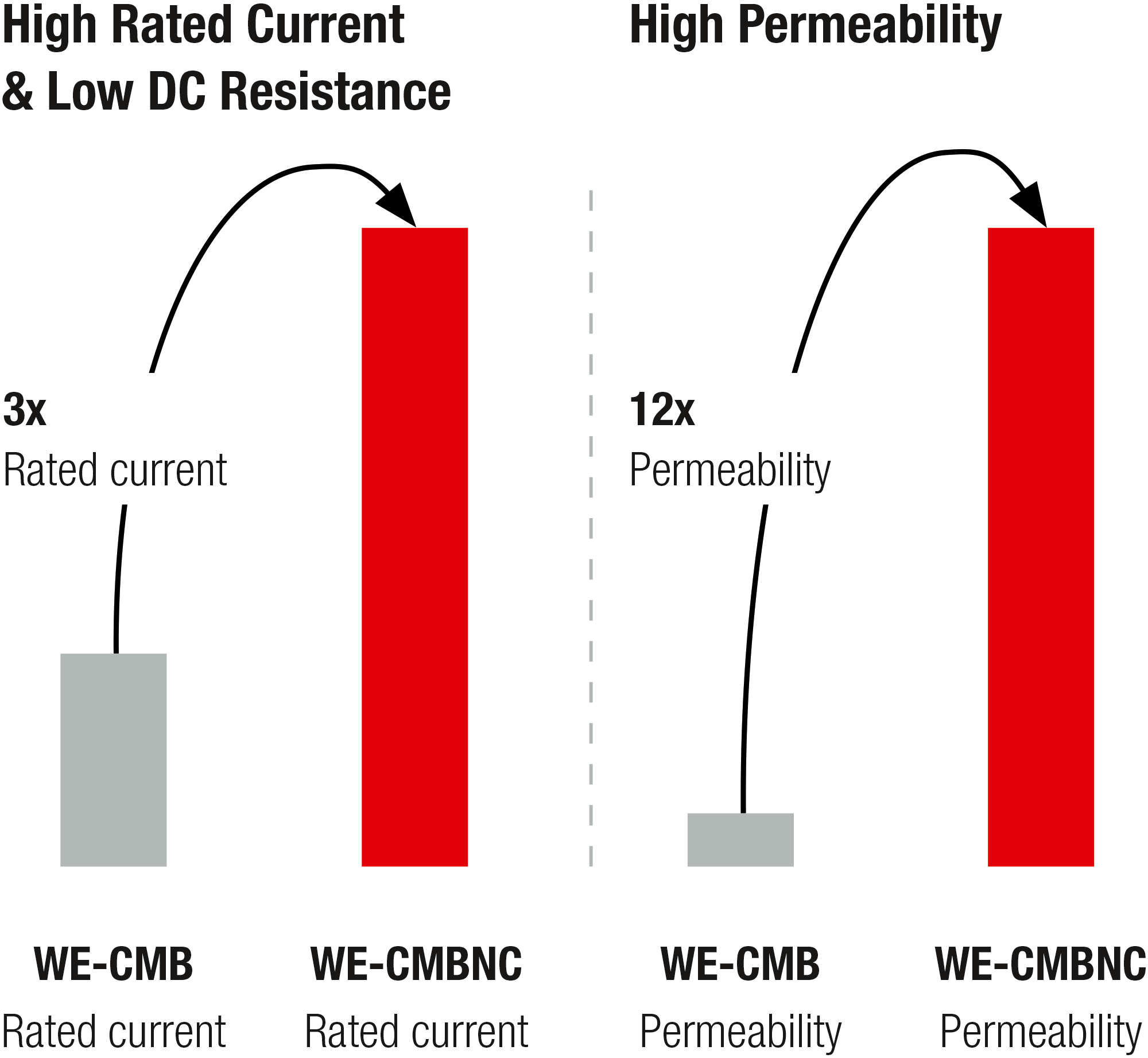

Characteristics
All Series
The Special Features

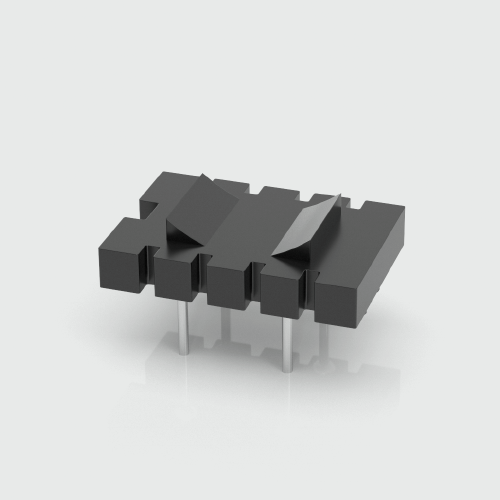

Optimized plastic base for best mechanical stability

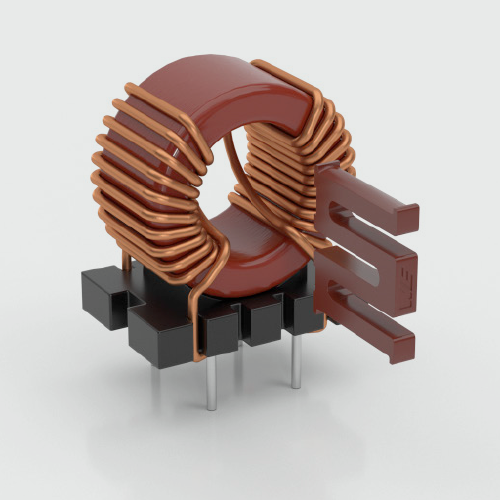

Patented winding spacer

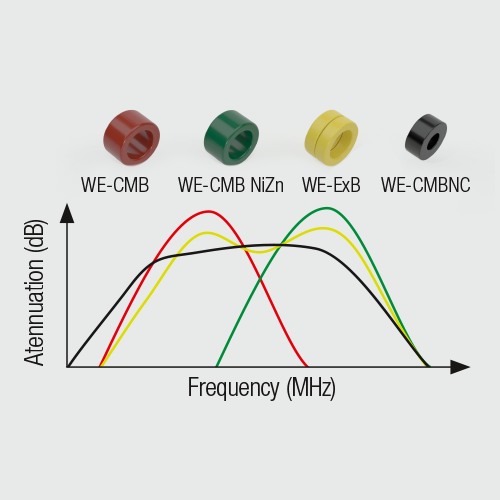

Broadband suppression

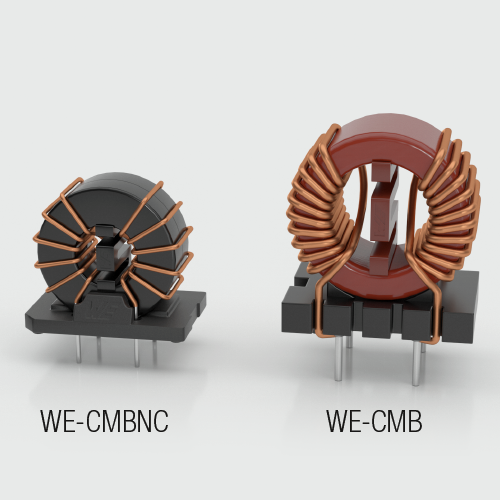

Low profile and high voltage version

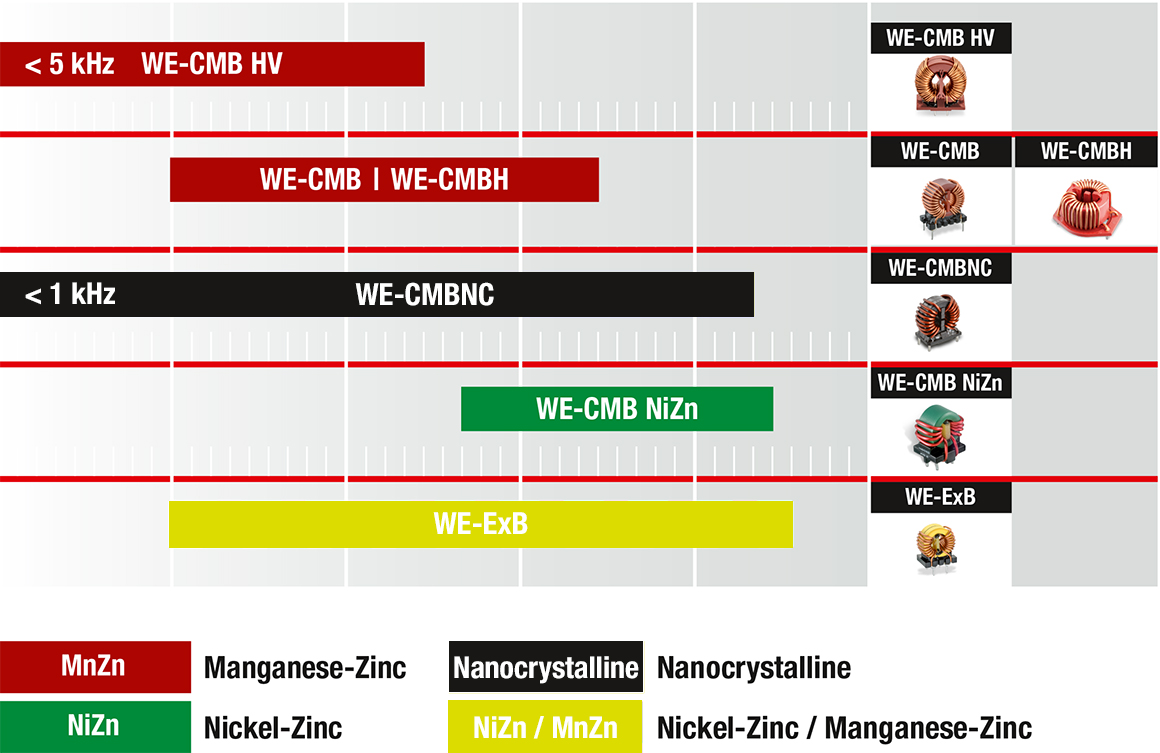

Wide Variety of Frequency Ranges for Different Applications
Application
- Power electronics
- Power line input and output filter
- Radio interference suppression in motors
- Suppression of common mode noise
Product Overview
Nanocrystalline Core – Broadband Suppression
MnZn Core – Low Frequency Suppression
NiZn Kern - NiZn Core – High Frequency Suppression
MnZn & NiZN - MnZn & NiZn – Low & High Frequency Suppression
MnZn & Horizontal Design – Low Profile Applications
MnZn & Special Spacer – High Voltage Applications
